Τηλεοπτικός μίκτης 4K Video Switcher 4 HDMI Camera Streaming Live Production

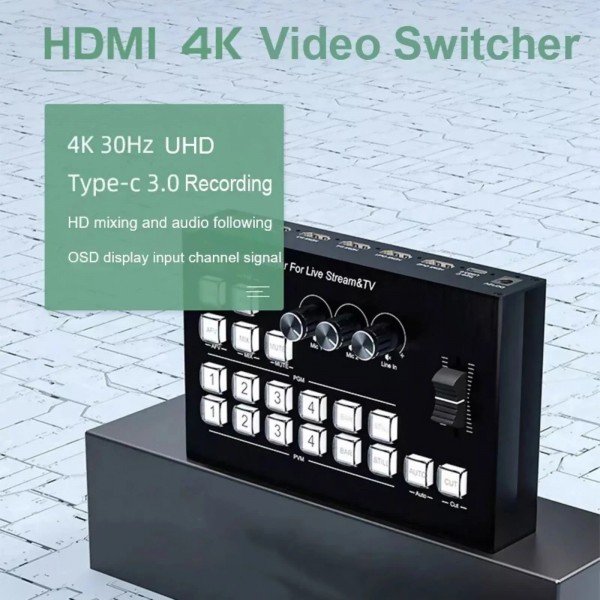

Video switcher for live streaming, 4 HDMI input support resolution 4K@30Hz, and support HDCP1.4 standard, support HD embedded audio + External analog audio, after mixed processing, can be embedded in the output HD signal or output from the analog port.

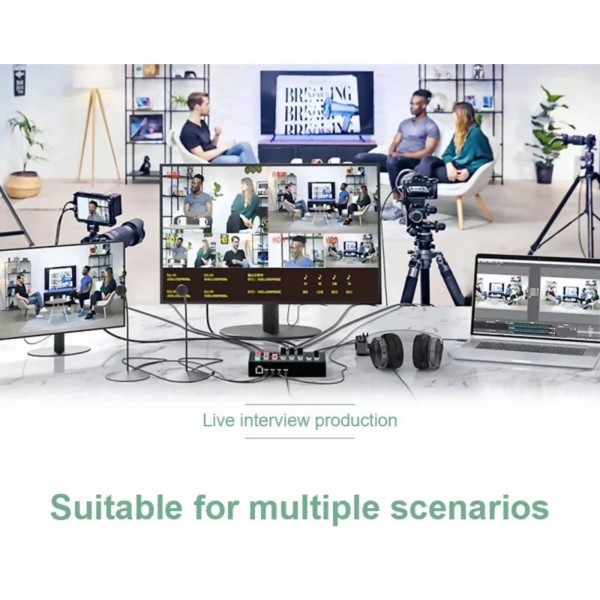

All resolution of the input signal is automatically adapted, the output resolution is 1920X1080@60Hz, To satisfy the requirements of Radio and television program production,live production of interviews and speeches, outdoor experience events, school courseware production and other video switching needs. It can be used in live streaming and various event venues.

Features:

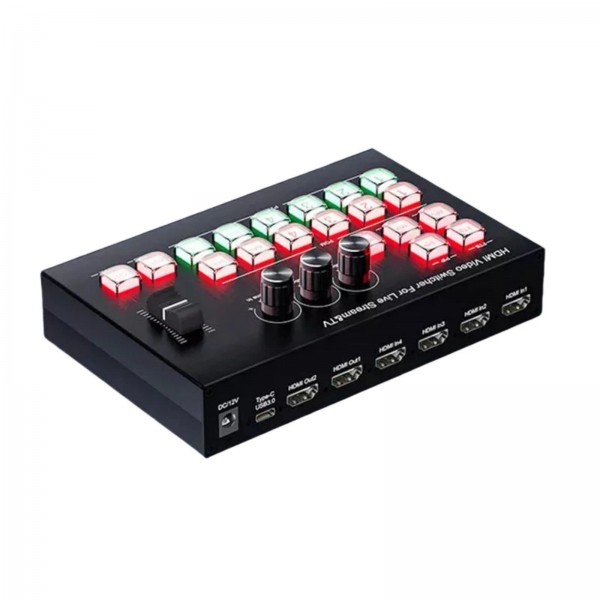

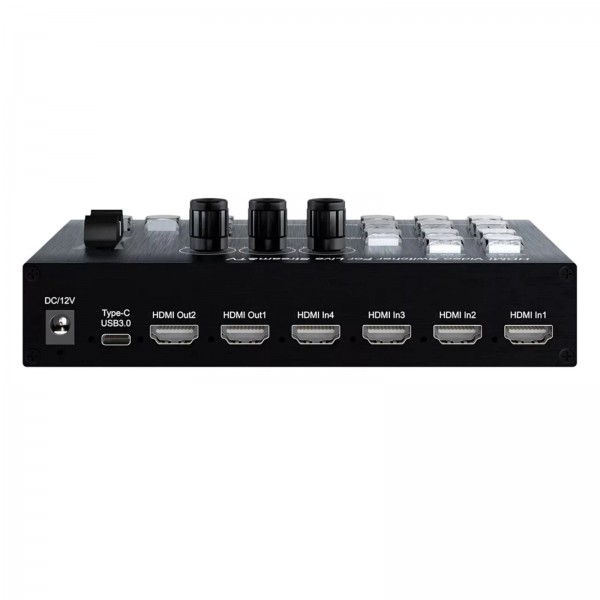

* 4 HDMI input; 2 HDMI output;

* One Type-C 3.0 capture and push network traffic port, supports video format YUY2;

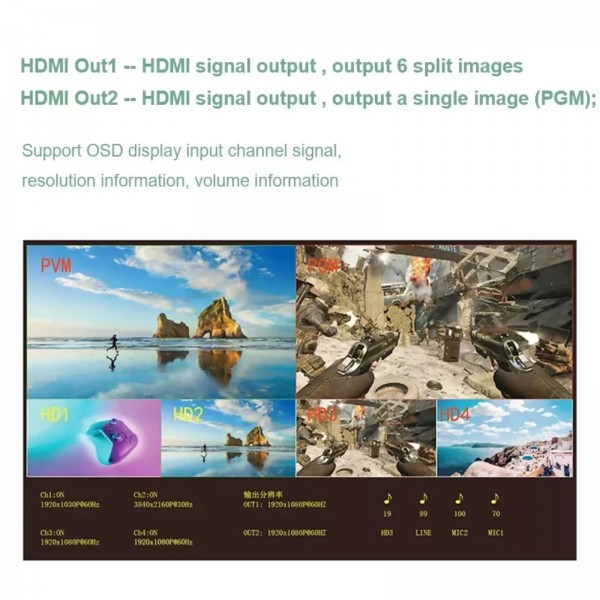

* Support OSD display input channel signal, resolution information, volume information;

* Support MIC,LINE IN,mixing output (LINE OUT fixed mixing output);

* Support HD audio following (fixed following PGM);

* Support left and right two segmentation (PGM on the left, PVW on the right);

* Support LINE OUT and HD audio output;

* Support power-off save Settings;

* High quality keys, color backlight design

HDMI input resolution .................................................................................. up to 4K@30Hz

HDMI output resolution ................................................................................. 1080P@60Hz

Type-C 3.0 capture and push network traffic video format ............................ YUY2,JPEG

Supports audio format ................................................................................................. PCM

The maximum bandwidth transmission ............................................................... 148.5MHz

Maximum transmission rate ............................................................................. 1.65 x3Gbps

The input cable length ........................... 1080P/60Hz≤15 m AWG26 HDMI standard cable

The output cable length ......................... 1080P/60Hz≤15 m AWG26 HDMI standard cable

Maximum working current ........................................................................................... 0.7 A

Power adapter specifications .......... Input AC(50Hz,60Hz)100V-240V; Output: DC/12V 2A

Working temperature range ....................................................................... (-15℃ to +55℃)

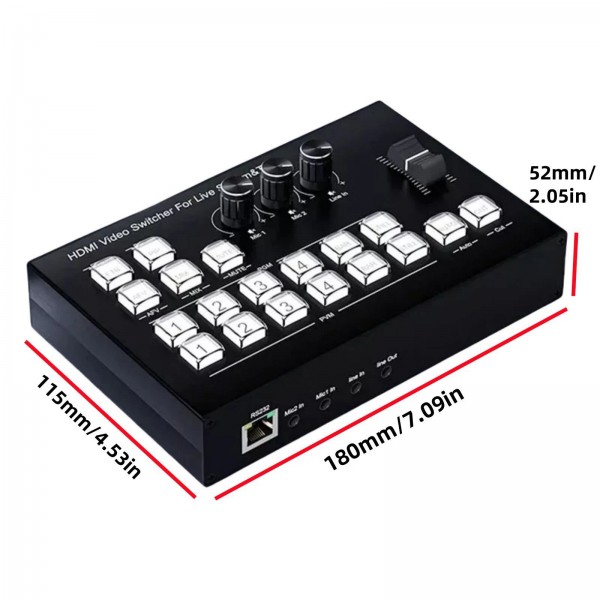

Size ..............................................................................................Approx. 180x115x52(mm)

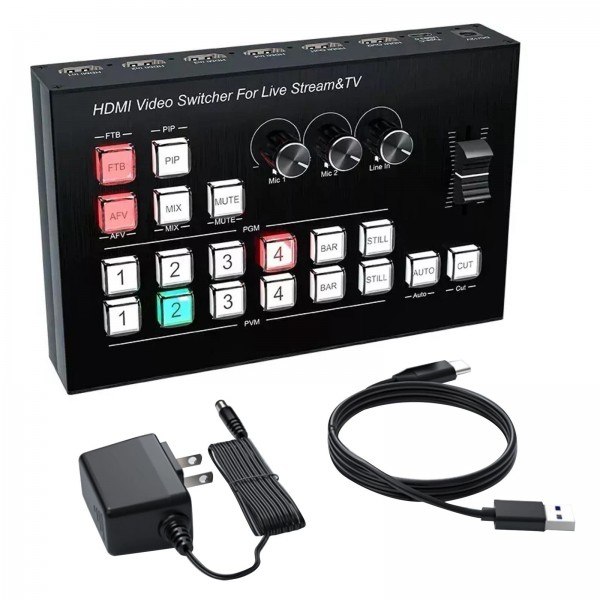

1: FTB -- PGM turns on or off to black screen

2: PIP -- Enter or exit picture-in-picture mode

(PGM background, PVW small image, audio follows PGM);

3: SPLIT -- Left and right two segmentation (PGM on the left, PVW on the right);

4: AFV -- audio follows PGM image;

5: MIX -- Audio mix (MIC1-2/Line in/HD);

6: MUTE -- Turn on or off the mute;

7: PGM_1 -- PGM image switched to HD1; PGM_2 -- PGM image switched to HD2;

PGM_3 -- PGM image switched to HD3; PGM_4 -- PGM image switched to HD4;

BAR -- PGM blue image turn on or off;

STILL -- PGM image is frozen or unfrozen;

8: PVW_1 -- PVW image switched to HD1; PVW_2 -- PVW image switched to HD2;

PVW_3 -- PVW image switched to HD3; PVW_4 -- PVW image switched to HD4;

BAR -- PVW blue image turn on or off;

STILL -- PVW image is frozen or unfrozen;

9: Mic1 -- Tap MIC 1 to turn on or off the Input volume, rotate to adjust the volume.

10: Mic2 -- Tap MIC 2 to turn on or off the Input volume, rotate to adjust the volume.

11: Line In -- Tap to turn on or off analog audio input , rotate to adjust the volume;

12: Slider key - Fade in and out between PVW and PGM image;

13: Auto -- Fade in and out between PGM and PVW image;

14: Cut -- Quick switch between PGM and PVW image;

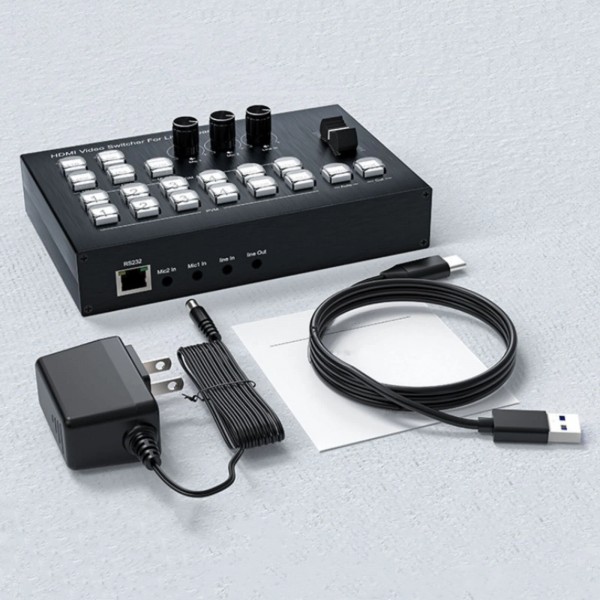

Package Content:

1. Video switcher for live streaming 1PCS

2. 1M Type-c USB3.0 to USB-A 3.0 cable 10Gpbs) 1PCS

3. DC/12V power adapter 1PCS

4. User manual 1PCS

Features:

HD Input and Output Capability: This video switcher supports HDMI input resolutions up to 4K@30Hz, ensuring the access of high-definition video signals. Meanwhile, it offers an output resolution of 1080P@60Hz, meeting the high-definition video output requirements for various scenarios such as radio and television program production, live interviews and speeches, outdoor experience events, and more.

Multi-Interface and Audio Mixing Functions: Equipped with 4 HDMI input interfaces, 2 HDMI output interfaces, and a Type-C capture interface, it provides abundant connection options. It supports MIC, LINE IN, and HD audio mixing outputs, enabling flexible processing and mixing of audio signals to enhance audio quality.

Intelligent Audio and Video Synchronization: It supports the Audio Follows Video (AFV) function, ensuring synchronized output of audio and video signals. Additionally, it supports LINE OUT and HD audio outputs to cater to different audio output needs.

Convenient Operation and Control: Through the OSD display, it shows input channel signals, resolution information, and volume information, allowing users to monitor device status in real-time. Furthermore, it supports various shortcut key operations, such as quick switching between PGM and PVM images, muting and unmuting audio, etc., improving operational efficiency.

Powerful Video Switching and Processing Capabilities: It supports the Picture-in-Picture (PIP) mode, allowing a PVM small image to be displayed on the PGM background with audio following the PGM. It also supports functions such as image freezing and blue background image toggling, providing users with rich video switching and processing capabilities.

Stable Performance and Wide Applicability: Adopting high-quality buttons and color backlight design, it enhances operational feel and visibility. It supports saving settings during power-off, ensuring that the device can restore previous configurations after power-off. Additionally, this video switcher is suitable for live streaming and various event venues, fulfilling a wide range of video switching needs.

Specifications:

Material: Aluminium alloy

Size: 180x115x52mm

Input interface: HDMI*4 (Up to 4K@30Hz)

Output interface: HDMI*2 (1080P@60Hz)

Audio input: 3 channels

Supports audio format: PCM

Maximum bandwidth transmission: 340MHz

Maximum transmission rate: 3.4 x 3Gbps

Input cable length: 4K/30Hz ≤ 15m AWG26 HDMI standard cable (Not Included)

Output cable length: 1080P/60Hz ≤ 15m AWG26 HDMI standard cable (Not Included)

Maximum working current: 0.7 A

Power adapter: Input AC(50Hz,60Hz)100V-240V; Output: DC/12V 2A

Working temperature range: -15℃ to +55℃

Usage: Plug and Play

Operating Systems: Supports for Windows series, for MacOS, for Android, and other systems

Supported Devices: Cameras, camcorders, game consoles, laptops, and other devices with HDMI interfaces

Connectable Devices: Televisions, monitors, projectors, etc.
