Professional 9 Channel Video Wall Controller Processor 3x3 TV Splicing Display Kit

Professional 9 Channel Video Wall Controller Processor 3x3 TV Splicing Display Kit
Professional 9 Channel Video Wall Controller Processor 3x3 TV Splicing Display Kit
Professional 9 Channel Video Wall Controller Processor 3x3 TV Splicing Display Kit
Professional 9 Channel Video Wall Controller Processor 3x3 TV Splicing Display Kit
Professional 9 Channel Video Wall Controller Processor 3x3 TV Splicing Display Kit
Professional 9 Channel Video Wall Controller Processor 3x3 TV Splicing Display Kit
Professional 9 Channel Video Wall Controller Processor 3x3 TV Splicing Display Kit
Professional 9 Channel Video Wall Controller Processor 3x3 TV Splicing Display Kit
Professional 9 Channel Video Wall Controller Processor 3x3 TV Splicing Display Kit
Professional 9 Channel Video Wall Controller Processor 3x3 TV Splicing Display Kit
Professional 9 Channel Video Wall Controller Processor 3x3 TV Splicing Display Kit
Professional 9 Channel Video Wall Controller Processor 3x3 TV Splicing Display Kit
Professional 9 Channel Video Wall Controller Processor 3x3 TV Splicing Display Kit
Professional 9 Channel Video Wall Controller Processor 3x3 TV Splicing Display Kit
Professional 9 Channel Video Wall Controller Processor 3x3 TV Splicing Display Kit
Professional 9 Channel Video Wall Controller Processor 3x3 TV Splicing Display Kit
Professional 9 Channel Video Wall Controller Processor 3x3 TV Splicing Display Kit
  • Stock: IN STOCK
  • Reward Points: 327
  • Code: WALL3X3HDMIB
  • Weight: 1.00kg
  • MPN: WALL3X3HDMIB
229.00€
Ex Tax: 184.68€
Price in reward points: 10900
Credit module TBI Bank RO 1.0.13

Product Introduction:

Brand new and high quality

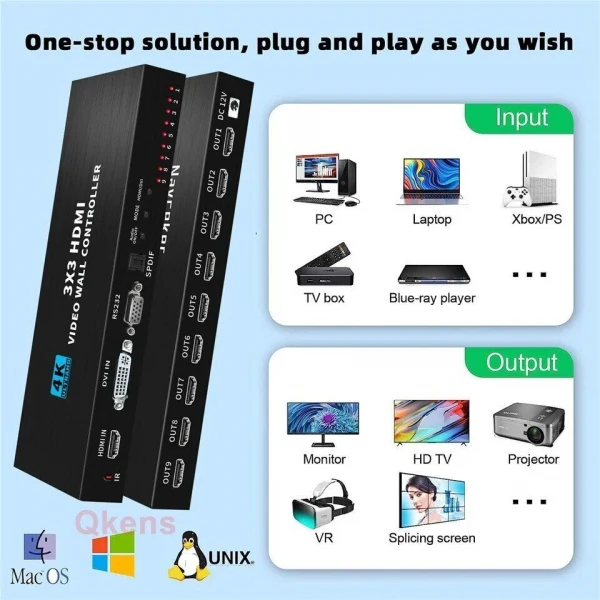

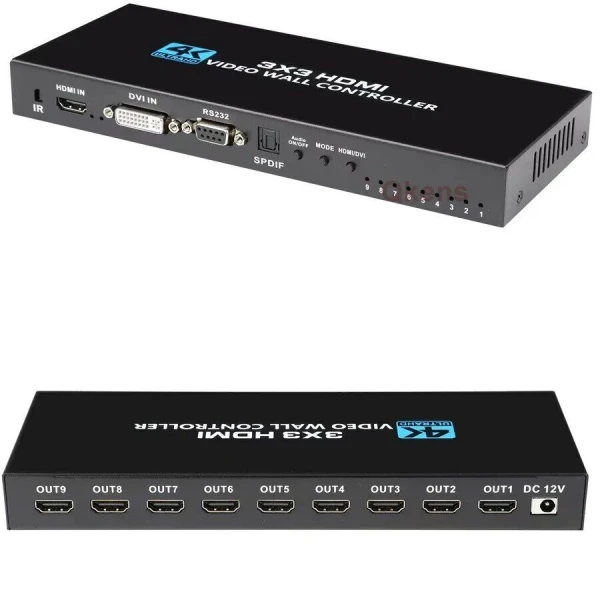

This 4K 3X3 video wall controller, support 1-way HDMl or DVI input and 9 HDMl output,its function is to divide

a complete HDMl or DVI HD image singal into 9 blocks and assign to 9 videodisplay unit (such as rear

projection unit, LCD TVetc.).

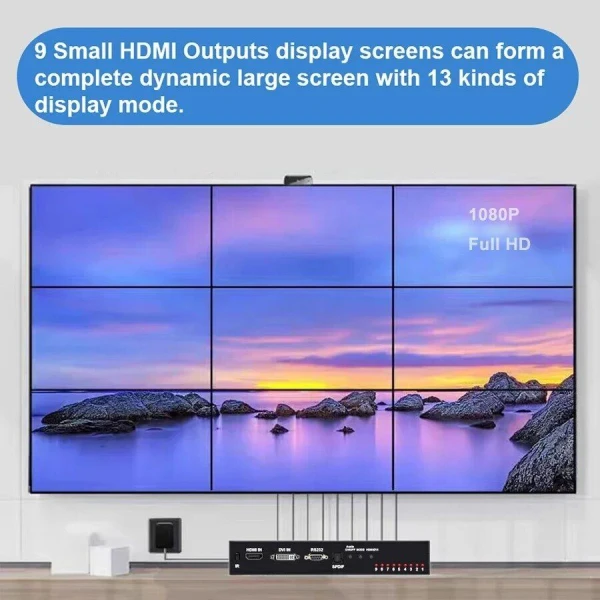

Complete with 9 HDMI high-definition videodisplay units to form a large dynamic image screen

Features:

* Supports one DVl input or HDMI input.

* Input support HDMI1.4, HDCP1.4.

* Input format: RGB/YUV24bit;

* Output format: RGB4:4:4 24bit.

* Support 3X3 stitching, easy operation, plug and play;

* Input support 1920x1080P@25/30/50/60Hz , 3840x2160P@24/30Hz

* Output support 1920x1080P@60Hz

* Support 9 HDMl outputs

* Supports SPDIF audio output over optical fibers.

* Supports RS232

* Supports remote control

* DC12V power supply

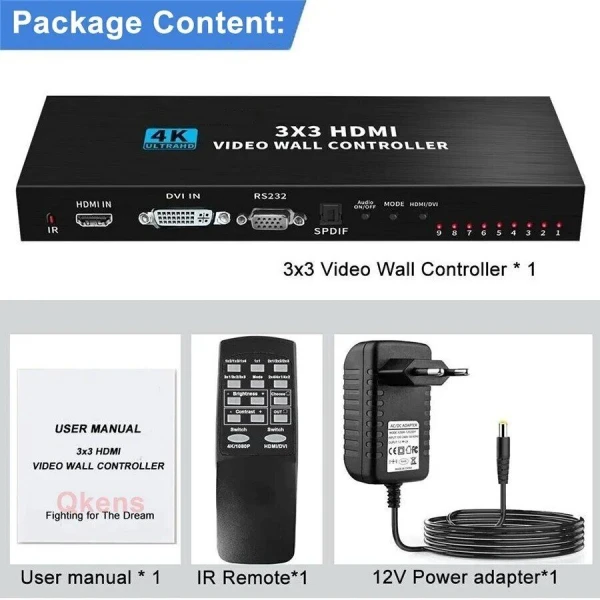

Package List:

1 x 4K 3X3 Video wall controller

1 x DC 12V Power adapter

1 x Remote control(without battery)

1 x User manual


Important note:

1)The 4K refers to the HDMI inputs signal only.It supports up to 4K 30Hz input and 1080P 60Hz output.

2)Pls use qualified HDMI cable with all 19 pines wired and shielded to pair the source and display.

Most sync issues are caused by poor cables.

3)It supports PCM 2CH stereo audio only either from Aux or the Digital toslink port.And under some cases,

when the input is 4K 30Hz, there might be no audio. Pls set the resolutions to 1080P.
