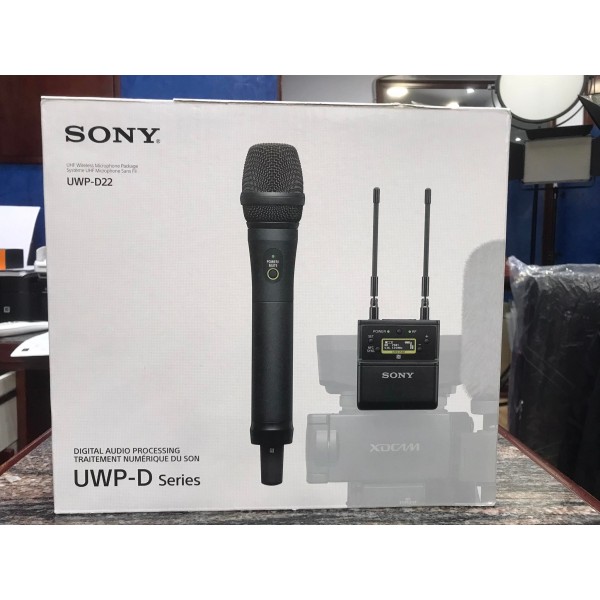

Wireless camera-based handheld microphone Sony UWP-D22

Unlike purely digital systems, the UWP-D22 allows you to send a single mic to multiple cameras for broadcast applications. Fast NFC communication makes setup for multiple receivers a breeze.

Auto-Gain Mode to Prevent Mic Distortion
Auto-Gain mode saves you the time and aggravation of setting and managing the input level on the transmitter. It uses a limiter to help prevent distortion, great when the loudness of the presenter’s voice is unknown.

The +15 dB Gain Volume-Boost mode boosts the mic gain by 15 dB to compensate for situations when the mic is not close enough to the presenter’s mouth and the audio level is insufficient.

Manual input-level setting is also available.

High-Visibility OLED Display for Indoor/Outdoor Use

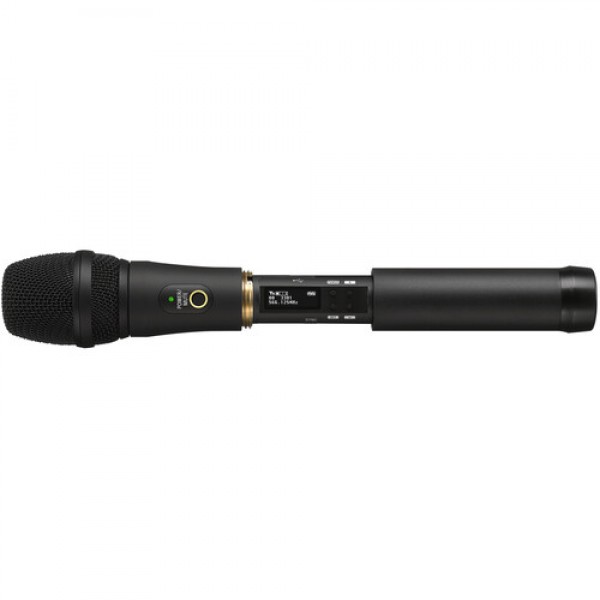

Both transmitter and receiver feature an easy-to-read OLED display. The quick response of the display lets you see the operating conditions clearly and accurately in real time, even in bright sunlight.

Channel Memory Function
The channel memory function lets you quickly switch between the groom’s lav mic and the wedding guest’s interview mic with the press of a button. It also allows for a fast change between mics in corporate presentations or quickly swapping to a back-up mic.

DSP Filter Removes Occupancy Sensors Artifacts
Two levels of DSP filtering help remove the artifacts caused by occupancy sensors used in modern “green” buildings to turn off lights when people leave a room.

The angle of the two antennas can also be adjusted, which helps to further prevent signal dropouts.

The system offers a 72 MHz bandwidth with 2772 UHF frequencies.

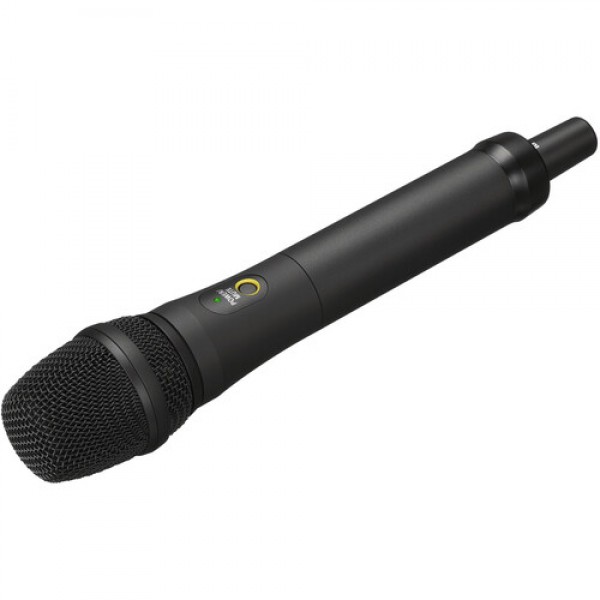

The handheld mic features a dynamic mic capsule with a directional cardioid polar pattern that helps to reject unwanted background sound, making it ideal in noisy environments such as trade-show floors or busy public areas.

The transmitter uses an interchangeable mic capsule design compatible with over 40 different capsules from various manufacturers.

Using the included shoemount adapter, the receiver easily mounts on your camera, while adding minimal weight to your rig. Cables are included to connect to cameras equipped with either a 3.5mm or an XLR audio input.

• This setup provides a direct digital connection, skipping the receiver’s D/A and camera’s A/D converters for superior audio quality and low noise.
• Audio information such as RF level meter, audio-mute status, and low-battery alert for the transmitters is displayed on the camera's viewfinder.
• This cable-free configuration allows for fast setup in the field.
• Compatible models include the a7R IV mirrorless camera, the PXW-Z280 and PXW-Z190 XDCAM camcorders, and more.

A battery count-up timer allows for accurate reading of battery running time to minute accuracy.

The transmitter and receiver can also be powered through their USB ports, allowing them to run for numerous hours on a USB power pack or indefinitely, if you have access to AC.

With the SMAD-P5 Digital MI Shoe adapter, the receiver can get power directly from Sony cameras equipped with an MI Shoe.

Cartridge-type battery cases allow for quick battery replacement on set.

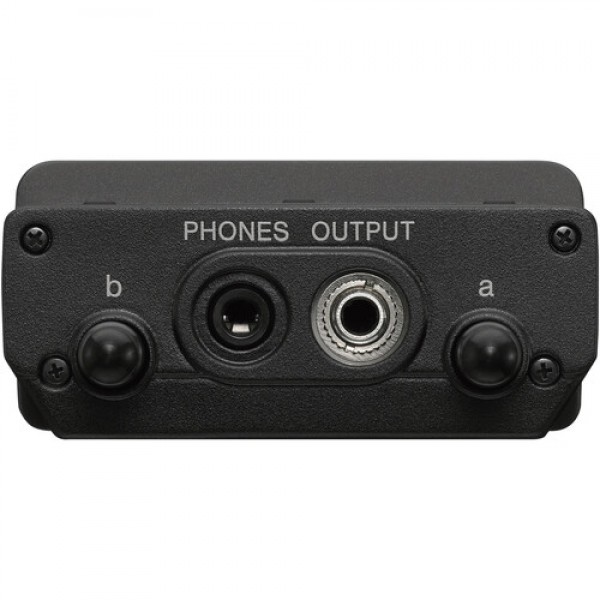

When the receiver is used as a personal monitoring device by director or crew on set, Monitor mode lets you adjust the headphone volume on the fly with the +/- buttons.

• The RF output level on the transmitter has two settings: the 5mW option allows you to conserve battery life, while the 30mW setting gives you more power to overcome interference, great in busy RF environments.
• Low-cut filter reduces noise caused by wind or machinery—Off/Low (100 Hz)/Mid (150 Hz)/High (200 Hz).
• The receiver provides a variable output level control of ±12 dB, useful when working with cameras without manual input level control.
• Simple menus make navigation easy. Advanced menus for in-depth control are also available.
• The variable mute button on the transmitter can be programmed for latched or momentary muting. It can also be used as a momentary talk button.
• You can operate up to 16 mics in one location.
•

• Oscillator Type

  Crystal-controlled PLL synthesizer
  Antenna Type

  1/4 λ wavelength wire antenna
  Carrier Frequencies

  14UC : 470.125 MHz to 541.875 MHz(UHF-TV channels 14 to 25)
  25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)
  42LA : 638.125 MHz to 697.875 MHz(UHF-TV channels 42 to 51)
  90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz
  21CE : 470.025 MHz to 542.000 MHz(UHF-TV channels 21 to 29)
  33CE : 566.025 MHz to 630.000 MHz(UHF-TV channels 33 to 40)
  42CE : 638.025 MHz to 694.000 MHz(UHF-TV channels 42 to 48)
  38CN : 710.025 MHz to 782.000 MHz(UHF-TV channels 38 to 46)
  E : 794.125 MHz to 805.875 MHz
  BJ: 806.125 MHz to 809.750 MHz
  KR : 925.125 MHz to 937.500 MHz
  RF Output Power

  30 mW/5 mW selectable (UC, U, CE, LA, CN models)
  10 mW/2 mW selectable (J, E, KR models)
  Capsule Type

  Dynamic
  Directivity

  Uni-directional
  Reference Audio Input level

  –55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation)
  Maximum Audio Input Level

  151 dB SPL (21 dB attenuation, using supplied microphone unit )
  Audio Attenuator Adjustment Range

  0 dB to 21 dB (3 dB steps)
  Frequency Response

  70 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
  70 Hz to 15 kHz (Typical) (J model)
  Signal-to-Noise Ratio

  60 dB (–60 dBV, 1 kHz sine wave input ) 102 dB (GAIN MODE set to AUTO GAIN, max deviation, A-weighted)
  96 dB (GAIN MODE set to NORMAL, max deviation, A-weighted)
  Distortion

  0.9% or less (–60 dBV, 1 kHz input )
  Audio Delay

  Approx. 0.35 ms
  Tone Signal Frequency

  In UWP-D compander mode: 32.382 kHz
  In UWP compander mode: 32 kHz
  In WL800 compander mode: 32.768 kHz
  Display

  OLED
  Power Requirements

  DC 3.0 V (two LR6/AA size alkaline batteries)
  DC 5.0 V (supplied from USB Type-C connector)
  Battery life*

  Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
  Approx. 10 hours with output power of 10 mW (J, E, KR models)

  * Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).
  Operating Temperature

  0 °C to 50 °C (32 °F to 122 °F)
  Storage/Transport Temperature

  –20 °C to +55 °C (–4 °F to +131 °F)
  Dimensions

  ø48 x 258 mm (1 15/16 x 10 1/4 in.) (diameter / length)
  Mass

  Approx. 255 g (9.0 oz) (excluding batteries)
